你的位置:首頁 » 產(chǎn)品中心 » Former(二手)儀器 » 網(wǎng)絡(luò)分析儀 » Agilent E5072A 2-port, 30 kHz to 4.5 GHz--手機 18912657535

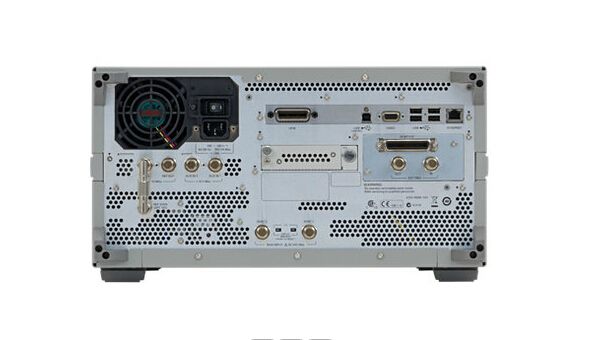

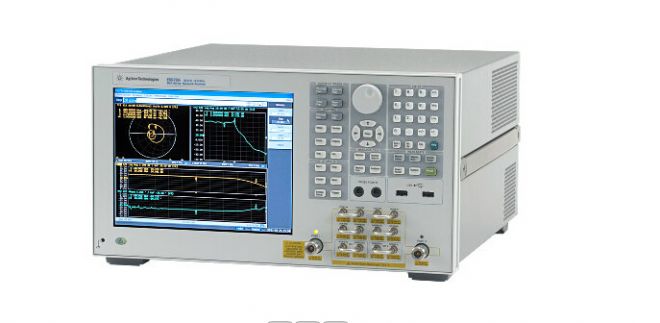

儀器名稱: Agilent E5072A 2-port, 30 kHz to 4.5 GHz--手機 18912657535 儀器型號: Agilent E5072A 儀器品牌: Agilent 儀器指標: 2-port, 30 kHz to 4.5 GHz

 Key Features & Specifications

 Description

The Agilent E5072A ENA Series Network Analyzer is a new addition to the ENA series providing a more flexible platform with enhanced capabilities to meet your evolving measurement needs for a wide range of applications. The improved performance on the E5072A exceeds what is possible with the current RF network analyzers. The E5072A with a configurable test set provides access to the signal paths between the internal source, receivers, bridges, and the analyzer’s test ports; which improves instrument sensitivity as well as the ability to add components or peripherals for a variety of applications. The E5072A delivers new standards in versatility, speed and accuracy, and is suitable for full performance characterization of passive and active components, such as antennas, high-rejection filters, and high-power amplifiers.

Learn more: E5072A ENA Series Network Analyzer - Technical Overview

The Right Solution for RF Amplifier Measurement

The E5072A with power level calibration techniques is a cost-effective & powerful tool for RF amplifier measurements. Its receiver leveling function with receiver measurements helps you achieve accurate absolute power level for characterization of power-dependent active devices in nonlinear operation.

Amplifier measurement wizard for the E5072A is available on Agilent’s website that guides you through measurement procedures of your amplifiers and minimize the time spent on measurement setup. S-parameter, harmonic distortion, and CW or swept gain compression measurements are supported by the utility wizard.

For more detail about basic RF amplifier measurement, view the application note “Basics of RF Amplifier Measurements with the E5072A ENA Series Network Analyzer".

For more detail about high-power amplifier measurement, view the application note “High-power Measurements using the E5072A ENA Series Network Analyzer".

Innovative PIM and S-parameter measurement solution

Passive intermodulation (PIM) is a form of intermodulation distortion that occurs in passive components such as antennas, cables, connectors, or duplexers with two or more high-power input signals.

The innovative solution with the E5072A can combine PIM and S-parameter measurements of these passive components. With Fast, Flexible and Accurate measurement capabilities, the new test system is a higher-performance and lower-cost solution that can replace the conventional PIM test solutions.

Learn more: PIM measurement application and solution page



View Video: E5072A- The Complete Solution to Replace Your 875x



E5072A-008 Frequency offset mode

E5072A-010 Time domain analysis

E5072A-017 Removable hard disk drive

E5072A-019 Standard hard disk drive

E5072A-1A7 Calibration + Uncertainties + Guardbanding

E5072A-1CM Rack mount kit

E5072A-1CN Front handle kit

E5072A-1CP Rack mount and front handle kit

E5072A-1E5 High stability timebase

E5072A-245 2-port, 30k to 4.5 GHz, configurable test set

E5072A-285 2-port, 30k to 8.5 GHz, configurable test set

E5072A-810 Add keyboard

E5072A-820 Add mouse

E5072A-A6J ANSI Z540-1-1994 Calibration

E5072A-UNQ Standard stability timebase
