你的位置:首頁 » 產品中心 » Former(二手)儀器 » 網絡分析儀 » N5224A PNA Microwave Network Analyzer--電話18912657535

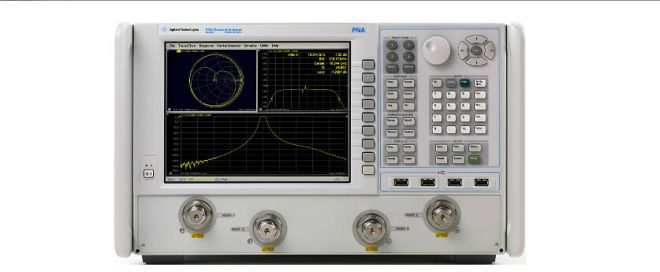

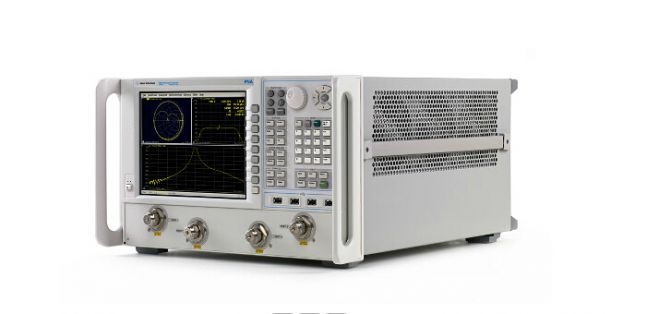

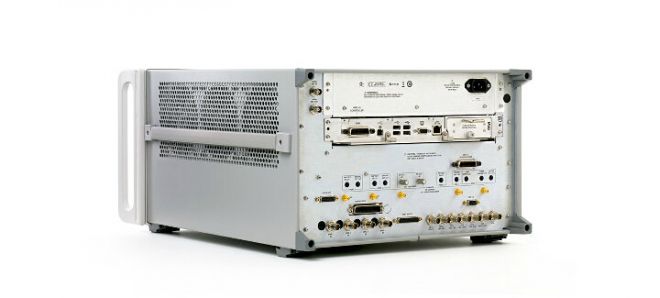

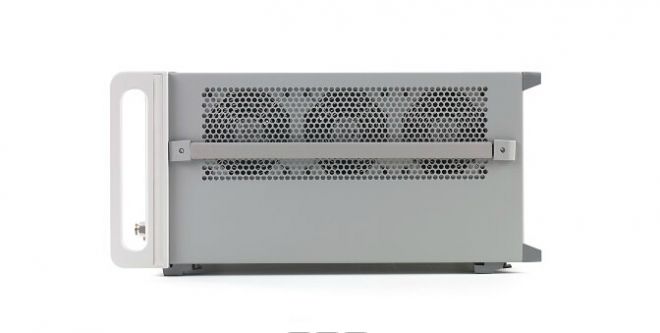

儀器名稱: N5224A PNA Microwave Network Analyzer--電話18912657535 儀器型號: N5224A PNA Microwave Network Analyzer 儀器品牌: Agilent 儀器指標: 10 MHz to 43.5 GHz

 Key Features & Specifications

  • 10 MHz to 43.5 GHz
  • 2-ports with single source or 4-ports with two built-in sources
  • 127 dB system and 132 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth
  • High output power (+13 dBm) and a wide power sweep range (38 dB)
  • Best dynamic accuracy: 0.1 dB compression with +12 dBm input power at the test port
  • Low noise floor of -114 dBm at 10 Hz IF bandwidth

 Description

Highest performance network analyzer that meets your budget

The PNA Series is the highest-performing microwave network analyzer in the industry for passive and active device test. You can choose from five frequency models, 13.5, 26.5, 43.5, 50, or 67 GHz, and customize your PNA with the just the right level of performance to meet your specific budget and measurement needs.

The Agilent PNA is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements.

Most accurate S-parameter measurements

The PNA Series provides high-power sources and the best linear receivers, giving it the most accurate S-parameter measurements with the widest power range in the market.

Applications

  • S-parameters (CW and pulsed)
  • Noise figure
  • Gain compression
  • Intermodulation and harmonic distortion
  • Conversion gain/loss
  • True-differential stimulus
  • Millimeter-wave
  • Material measurements
  • Signal integrity
  • Antenna test

PNA Firmware, Upgrade and Support


N5224A-008Pulsed RF Measurements
N5224A-010Time Domain
N5224A-020Add IF inputs
N5224A-021Add pulse modulator to internal first source
N5224A-022Add pulse modulator to internal second source
N5224A-025Add four internal pulse generators
N5224A-028Noise figure measurements using standard receivers
N5224A-080Frequency offset measurements
N5224A-082Scalar calibrated converter measurements
N5224A-083Vector and scalar calibrated converter measurements
N5224A-084Embedded LO measurements
N5224A-086Gain compression application
N5224A-087Intermodulation distortion measurements
N5224A-088Source phase control
N5224A-118Fast CW Mode
N5224A-1A7Calibration + Uncertainties + Guardbanding
N5224A-1CMRack mount kit for installation without handles
N5224A-1CPRack mount kit for installation with handles
N5224A-2002 ports, single source, base hardware configuration
N5224A-2012 ports, single source, with configurable test set
N5224A-2102 ports, single source, with metrology configuration
N5224A-2172 ports, single source, configurable test set, extended power range
N5224A-2192 ports, single source, configurable test set, extended power range, bias-tees
N5224A-301Application for use with standard CalPods
N5224A-302Application for use with temperature-characterized CalPods
N5224A-4004 ports, dual source, base hardware configuration
N5224A-4014 ports, dual source, with configurable test set
N5224A-4104 ports, dual source, with metrology configuration
N5224A-4174 ports, dual source, configurable test set, extended power range
N5224A-4194 ports, dual source, configurable test set, extended power range, bias-tees
N5224A-460Integrated true-mode stimulus application
N5224A-551N-port calibrated measurements
N5224A-897Built-in performance test software for inclusive calibration, perpetual license
N5224A-898Built-in performance test software for standards compliant calibration, perpetual license
N5224A-A6JANSI Z540-1-1994 Calibration
N5224A-UK6Commercial calibration certificate with test data
N1966A

Pulse/IO Adapter

Pulse/IO Adapter

N1966A

  • Adapter for connecting between Pulse I/O connector and coaxial inputs and outputs of external pulse generators and external pulse modulators

View Details

N6171A

MATLAB Software

MATLAB Software

N6171A

  • Create arbitrary waveforms
  • Customize measurement/data analysis routines, instrument applications/test systems
  • Automate measurements, signal generation, report generation
  • Available directly from Agilent with purchase of compatible instrument

View Details

N6171A-M01

MATLAB-Basic Package, individual license - node-locked

MATLAB-Basic Package, individual license - node-locked

N6171A-M01

  • Basic configuration includes:
  • MATLAB software environment
  • Instrument Control Toolbox

View Details

N6171A-M02

MATLAB-Standard Package, individual license - node-locked

MATLAB-Standard Package, individual license - node-locked

N6171A-M02

  • Standard MATLAB configuration includes:
  • MATLAB software environment
  • Instrument Control Toolbox
  • Communications Toolbox
  • DSP System Toolbox
  • Signal Processing Toolbox

View Details

N6171A-M03

MATLAB-Advanced Package, individual license - node-locked

MATLAB-Advanced Package, individual license - node-locked

N6171A-M03

  • Advanced MATLAB configuration includes:
  • MATLAB software environment
  • Instrument Control Toolbox
  • Communications Toolbox
  • Signal Processing Toolbox
  • DSP System Toolbox
  • RF Toolbox

View Details
