儀器名稱: E5071C ENA Series Network Analyzer---手機18912657535 儀器型號: E5071C－2K5 儀器品牌: Agilent 儀器指標: 9 kHz to 20 GHz? ?2- or 4-port
Description

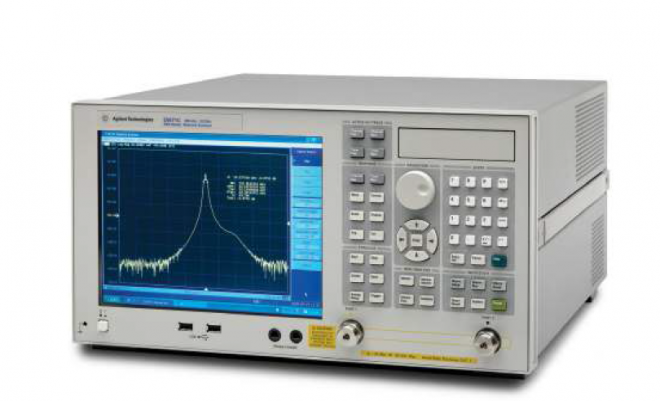

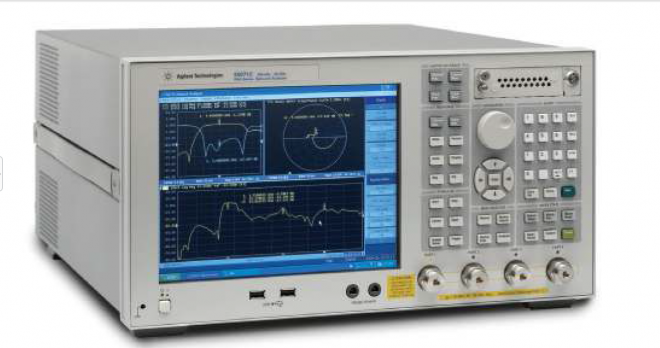

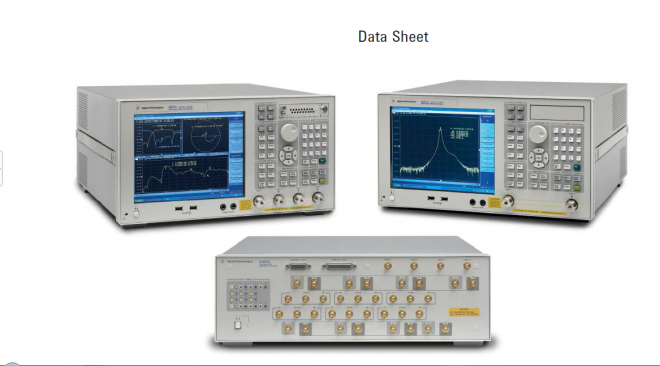

The E5071C network analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency range up to 20 GHz.
The E5071C has flexible configurations and you can select the number or ports, frequency and bias teas to fit your application. And the E5071C provides upgradability across all of the options at any time without changing serial number, for both software and hardware options. The E5071C network analyzer provides flexibility as you plan for future investments.
- Frequency Option: 4.5, 6.5, 8.5, 14 and 20 GHz.

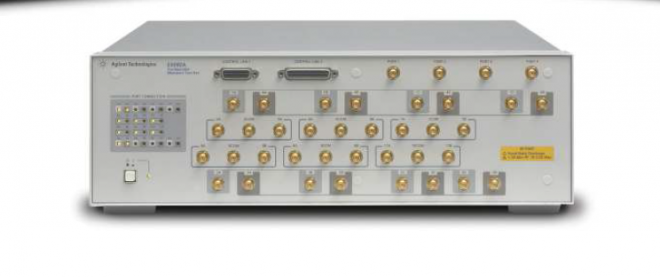

- Port Configuration: 2 or 4 ports, plus flexible multiport configuration of up to 22 ports with E5092A multiport test set
E5071C-230 2-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-235 2-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-240 2-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-245 2-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-260 2-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-265 2-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-280 2-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-285 2-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-430 4-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-435 4-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-440 4-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-445 4-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-460 4-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-465 4-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-480 4-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-485 4-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-2D5 2-port test set, 300 kHz to 14 GHz with bias tees
E5071C-4D5 4-port test set, 300 kHz to 14 GHz with bias tees
E5071C-2K5 2-port test set, 300 kHz to 20 GHz with bias tees
E5071C-4K5 4-port test set, 300 kHz to 20 GHz with bias tees
E5071C-235 2-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-240 2-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-245 2-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-260 2-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-265 2-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-280 2-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-285 2-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-430 4-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-435 4-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-440 4-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-445 4-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-460 4-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-465 4-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-480 4-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-485 4-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-2D5 2-port test set, 300 kHz to 14 GHz with bias tees
E5071C-4D5 4-port test set, 300 kHz to 14 GHz with bias tees
E5071C-2K5 2-port test set, 300 kHz to 20 GHz with bias tees
E5071C-4K5 4-port test set, 300 kHz to 20 GHz with bias tees
